Speed & RPM Key Holder Hanger
0
0
jajaum3d
@jajaum3d
| Designs: | 43 |
| Downloads: | 18204 |
| Followers: | 8 |
| About me: | Hi there! I'm a 3D printing enthusiast with over a decade of hands-on experience, and my passion for this innovative technology hasn't waned a bit. My designs are born from inspiration and brought to life through extensive testing and refinement. Whether it's a whimsical fantasy piece or a practical everyday item, if an idea sparks my interest, I'll turn it into reality. I hope you'll find joy and utility in my creations, just as I do in designing them. Happy printing! |
Product description
🚗 Transform your wall into a dashboard with this Speed & RPM Key Holder! A functional and fun way to organize your keys.
Commercial License & More Benefits
Expand your business opportunities with a commercial license for all my designs, plus exclusive benefits such as early and free access to new models. Get your benefits here:
https://www.printables.com/@jajaum3d#join.@jajaum3d.64
Description

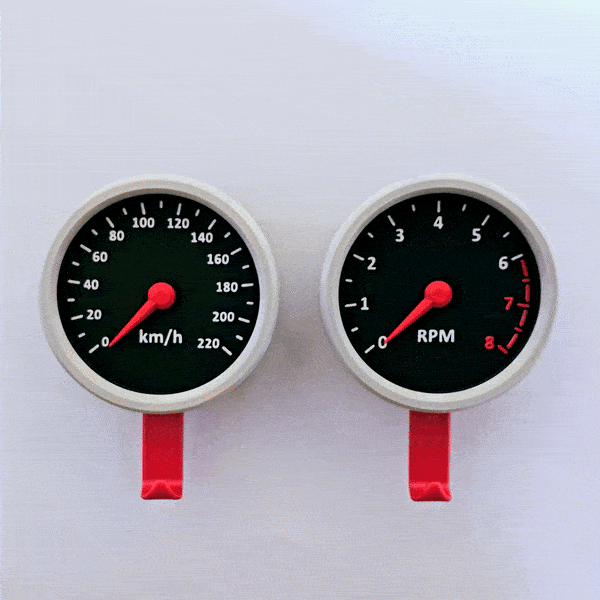

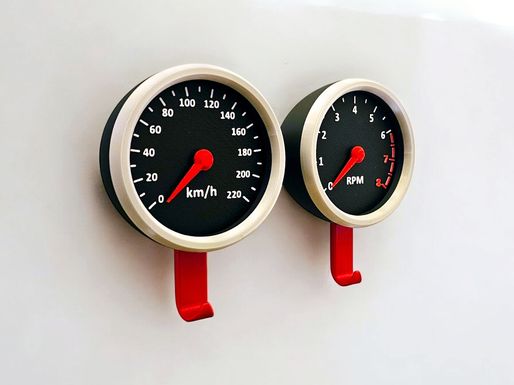

The Speed & RPM Key Holder Hanger is a unique and functional design for automotive enthusiasts. This key holder not only keeps your keys organized and away from the wall to avoid scratches but also adds a touch of creativity to your space with customizable panels.
Choose between KM/H, MPH, or RPM displays to fit your preference. Pair it with the Fuel Gauge Wall Key Holder Hanger to create a complete car-inspired dashboard. It’s perfect for car lovers, motorcycle fans, or anyone looking to add a personalized touch to their home decor.
The modular design is 100% 3D printable, requiring no additional parts like springs or screws. All moving components are integrated into the design, ensuring simplicity and elegance in functionality.
All my designs are protected by Copyright Law. Purchasing does not grant the right to sell any digital file or printed model of my designs without explicit consent. Please respect the hard work of 3D artists by not sharing or selling digital files.
Printing settings
Most parts can be printed with 3 walls and lightning infill, except where noted below.

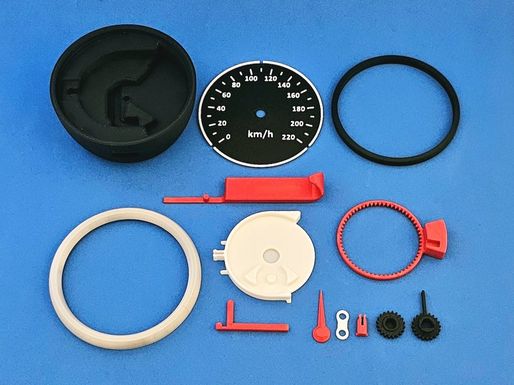

Colors (as in the reference image):
Black:
- Case.3mf (Use 5% grid infill for better stability).
- Screw.3mf
Red:
- Hook.3mf
- Pointer.3mf
Silver:
- Cover.3mf
Random Colors (Internal Parts):
These are not visible, so color doesn’t matter. High-quality filament is recommended.
- CenterGear.3mf
- CentralPin.3mf
- Connector.3mf
- GearBase.3mf
- Lever.3mf
- OuterGear.3mf (Use 80% grid infill as this serves as the counterweight).
- PlanetGear.3mf
Multicolor Panels:
Panels can be printed on a standard single extruder printer with manual filament changes at specific heights. Use 0.1mm layer height for best results.
Pannel-MPH.3mf and Pannel-KMH.3mf:
Start with black and switch to white at 1.2mm.
Pannel-RPM.3mf:
Start with black, switch to white at 1.2mm, and to red at 1.8mm.
Assembly Video
For a detailed assembly guide, watch the tutorial here:
YouTube: Speed & RPM Key Holder Hanger - Building Instructions
Assembly Tips
- Friction is the main challenge. Ensure all parts are smooth and free of strings. A heat gun or torch can help remove imperfections.
- During assembly, test each moving part. If anything sticks, consider sanding or identifying where it’s catching.
- While the OuterGear works best with 80% infill for weight, tests show it can function with lower infill if the system is smooth enough.
License
PERSONAL USE ONLY. You are authorized to:
✔️Print and use the 3D prints of the 3D model for private use, in unlimited quantity;
✔️Share the images of your 3D prints of the 3D model on communication media such as social networks or websites.
What is not allowed:
❌No commercial use or public sharing of the 3D model;
❌No modification or adaptation of the 3D model for public sharing or sale;
❌No distribution, sale, donation or exchange of the digital files of the 3D model.
